Description And Operation: Description

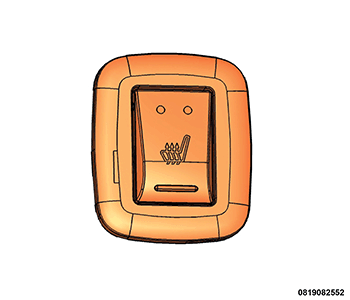

The heated seat switches for the 2nd row seats are located in the sliding door trim panels, near the door handles. These switches allow the 2nd row seat passengers to select from two different levels of electrical seat heating (high and low). Amber Light Emitting Diodes (LEDS) in each switch indicate the level of heat in use: Two LEDs are illuminated for high, one for low, and none for off. Pressing the switch once will select high-level heating. Pressing the switch a second time will select low-level heating. Pressing the switch a third time will shut the heating elements off.

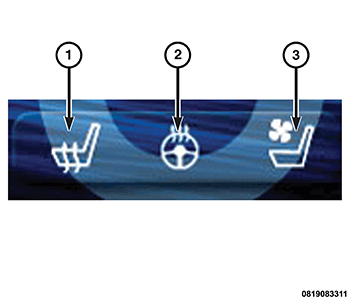

Front heated seat switches are soft switches located within the U-Connect touch screen. Refer to DESCRIPTION AND OPERATION .
