Removal And Installation: Installation
WARNING:
Use care when removing the door glass to prevent breakage. Do not force the glass out of the door. Failure to follow this warning may result in serious injury.

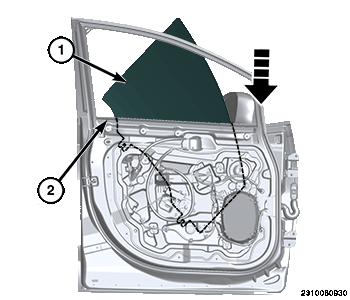

- From the outside of the front door, insert the front side of the glass (1) into the top of the door shell first to load the glass into the door.
- Rotate the door glass into position and secure it to the window regulator glass sliders making sure the glass and lift plates are properly seated.
- Install the glass fasteners (1) and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
- Position the access hole plugs (2) back into place and seat fully.
- Install the inner belt weatherstrip (1) to the front door opening (2).
- Install the front door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL AND INSTALLATION .
