Removal And Installation

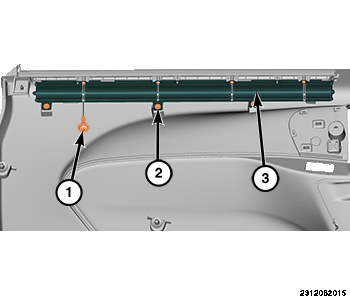

GC0188558Courtesy of CHRYSLER GROUP, LLC

REMOVAL

  1. Remove the trim panel. Refer to PANEL, DOOR TRIM, REMOVAL AND INSTALLATION .
  2. Remove the fasteners (1) attaching the sunshade (3) to the top bezel.
  3. Remove the fasteners (2) attaching the sunshade to the trim panel and remove the sunshade.

INSTALLATION

  1. Install the sunshade (3) onto the trim panel.
  2. Install the fasteners (2) attaching the sunshade to the trim panel.
  3. Install the fasteners (1) attaching the sunshade (3) to the top bezel.
  4. Install the trim panel. Refer to PANEL, DOOR TRIM, REMOVAL AND INSTALLATION .
