Removal And Installation: Installation

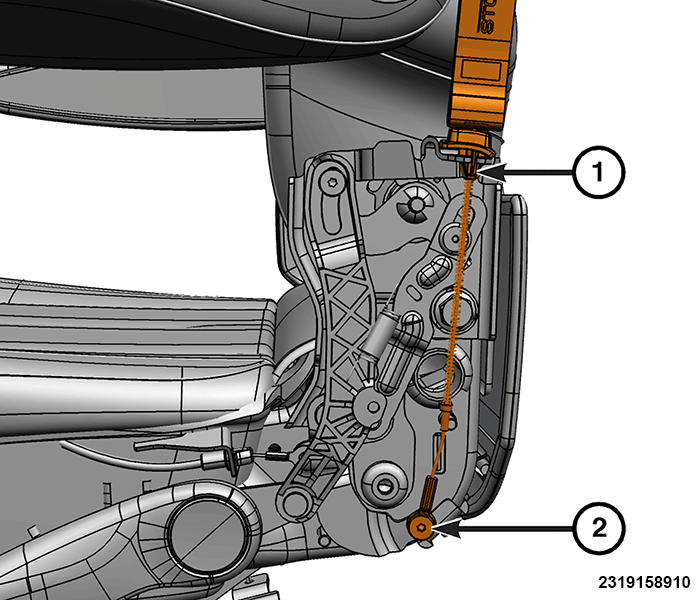

GC0188575Courtesy of CHRYSLER GROUP, LLC
  1. Install the cable end (1) and the fastener and cable into the mechanism (2).
    GC0177916Courtesy of CHRYSLER GROUP, LLC
  2. Install the outboard side shield (3) and screws (1).
  3. Install the recline handle (2)
