Removal And Installation: Liftgate: Installation
- Position the speaker by the inner door panel.
- Connect the wire harness connector to the speaker.

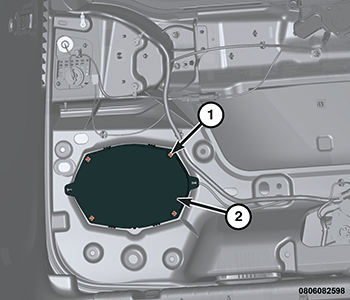

- Install the speaker (2) in the inner door panel and install the four speaker mounting screws (1). Tighten the screws securely.
- Install the liftgate trim panel. Refer to PANEL, TRIM, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
