Direct Clutch System

WARNING: This page is about a different variant/trim than selected.

For direct clutch (3, 5, R) operation, refer to Hydraulic System - 6F35 or Mechanical System - 6F35 .

Courtesy of FORD MOTOR COMPANY

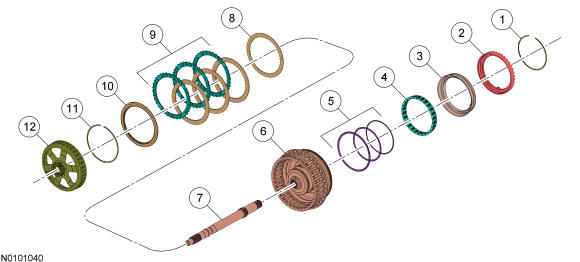

Item	Part Number	Description
1	7C122	Direct clutch cylinder snap ring
2	7F283	Direct clutch cylinder
3	7A262	Direct clutch piston
4	7F235	Direct clutch piston return spring
5	7C099	Direct clutch piston seals
6	7G384	Direct/Overdrive clutch hub
7	7F213	Input shaft
8	7B070	Direct clutch wave spring
9	7B164	Direct (3, 5, R) clutch assembly
10	7B066	Direct clutch pressure plate
11	7D483	Direct clutch snap ring
12	7A019	Rear planetary sun gear and shell assembly

Direct Clutch System

Condition	Possible Sources	Action
Direct (3, 5, R) clutch does not apply	Solenoid filter blocked to SSB	CLEAN or REPLACE the solenoid body filter screen. REFER to Main Control - Overhaul .
SSB mechanically stuck OFF		INSTALL a new SSB. REFER to Solenoids .
Direct (3, 5, R) clutch regulator valve stuck OFF		DISASSEMBLE, CLEAN and INSPECT the direct (3, 5, R) clutch regulator valve. If bore or valve is damaged, INSTALL a new main control. REFER to Main Control Valve Body .
SSB SIG, C35R, C35R SUP hydraulic circuits blocked/leaking		DISASSEMBLE and INSPECT the main control and separator plate passages for debris/blockage. CLEAN as necessary. REFER to Hydraulic System - 6F35 .
REV SUPPLY/DRIVE 2 to C35R SUP check ball missing/damaged		REMOVE the main control and INSPECT the check ball missing/damage. REFER to Main Control - Overhaul .
C35R supply hydraulic circuit blocked or leaking		DISASSEMBLE and INSPECT the transmission cover and support tower passages for debris/blockage. CLEAN as necessary. REFER to Hydraulic System - 6F35 .
Rear planetary sun gear and shell assembly		INSPECT the sun gear and shell for wear and damage. INSTALL new components as necessary. REFER to Transmission - Overhaul .
Direct (3, 5, R) clutch friction plates		DISASSEMBLE and INSPECT the direct (3, 5, R) clutch friction and steel plates. INSTALL new components as necessary. REFER to Mechanical System - 6F35 .
Direct (3, 5, R) clutch piston seal leakage		INSTALL a new direct (3, 5, R) clutch piston and seals. REFER to Mechanical System - 6F35 .
Direct (3, 5, R) clutch always applied	Solenoid filter or seal damaged at SSB	REFER to Main Control - Overhaul .
SSB mechanically stuck ON		INSTALL a new SSB. REFER to Solenoids .
Direct (3, 5, R) clutch regulator valve stuck ON		DISASSEMBLE, CLEAN and INSPECT the direct (3, 5, R) clutch regulator valve and bias spring. If bore or valve is damaged, INSTALL a new main control. REFER to Main Control - Overhaul .
SSB SIG, C35R, C35R SUP hydraulic circuits blocked/leaking		DISASSEMBLE and INSPECT the main control and separator plate passages for leakage. CLEAN as necessary. REFER to Hydraulic System - 6F35 .
Rear planetary sun gear and shell assembly		INSPECT the sun gear and shell for damage that would prevent free rotation. INSTALL new components as necessary. REFER to Transmission - Overhaul .
Direct (3, 5, R) clutch friction plates		DISASSEMBLE and INSPECT the direct (3, 5, R) clutch friction and steel plates. INSTALL new components as necessary. REFER to Mechanical System - 6F35 .
Direct (3, 5, R) clutch piston return spring.		INSPECT the return spring for damage. INSTALL new components as necessary. REFER to Mechanical System - 6F35 .
Direct (3, 5, R) clutch delayed/soft/slipping apply	Incorrect Solenoid Body Strategy programmed into TCM	REFER to Solenoid Body Strategy Download .
Solenoid filter or seal damaged at SSB		REFER to Main Control - Overhaul .
SSB mechanically sticking		INSTALL a new SSB. REFER to Solenoids .
Direct (3, 5, R) clutch regulator valve sticking		DISASSEMBLE, CLEAN and INSPECT the direct (3, 5, R) clutch regulator valve. If bore or valve is damaged, INSTALL a new main control. REFER to Main Control - Overhaul .
Direct (3, 5, R) clutch boost valve stuck ON		DISASSEMBLE, CLEAN and INSPECT the direct (3, 5, R) clutch boost valve and bias spring. If bore, valve or spring is damaged, INSTALL a new main control. REFER to Main Control - Overhaul .
SSB SIG, C35R, C35R SUP hydraulic circuits blocked/leaking		DISASSEMBLE and INSPECT the main control and separator plate passages for debris/blockage. CLEAN as necessary. REFER to Hydraulic System - 6F35 .
REV SUPPLY/DRIVE 2 to C35R SUP check ball missing/damaged		REMOVE the main control and INSPECT the check ball missing/damage. REFER to Main Control - Overhaul .
C35R supply hydraulic circuit blocked or leaking		DISASSEMBLE and INSPECT the transmission cover and support tower passages for debris/blockage. CLEAN as necessary. REFER to Hydraulic System - 6F35 .
Direct (3, 5, R) clutch friction plates		DISASSEMBLE and INSPECT the direct (3, 5, R) clutch friction and steel plates. INSTALL new components as necessary. REFER to Mechanical System - 6F35 .
Direct (3, 5, R) clutch piston seal leakage		INSTALL a new direct (3, 5, R) clutch piston and seals. REFER to Mechanical System - 6F35 .
Direct (3, 5, R) clutch harsh apply	Incorrect Solenoid Body Strategy programmed into the TCM	REFER to Solenoid Body Strategy Download .
SSB mechanically sticking		INSTALL a new SSB. REFER to Solenoids .
Direct (3, 5, R) clutch regulator valve sticking		DISASSEMBLE, CLEAN and INSPECT the direct (3, 5, R) clutch regulator valve and bias spring. If bore, valve or spring is damaged, INSTALL a new main control. REFER to Main Control - Overhaul .
Direct (3, 5, R) clutch boost valve sticking		DISASSEMBLE, CLEAN and INSPECT the direct (3, 5, R) clutch boost valve and bias spring. If bore, valve or spring is damaged, INSTALL a new main control. REFER to Main Control - Overhaul .
SSB SIG, C35R, C35R SUP hydraulic circuits blocked/leaking		DISASSEMBLE and INSPECT the main control and separator plate passages for debris/blockage. CLEAN as necessary. REFER to Hydraulic System - 6F35 .
Direct (3, 5, R) clutch friction plates		DISASSEMBLE and INSPECT the direct (3, 5, R) clutch friction and steel plates. INSTALL new components as necessary. REFER to Mechanical System - 6F35 .
Direct (3, 5, R) clutch piston return spring		INSPECT the return spring for proper installation and damage. INSTALL new components as necessary. REFER to Mechanical System - 6F35 .
