Main Control Cover: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

1.

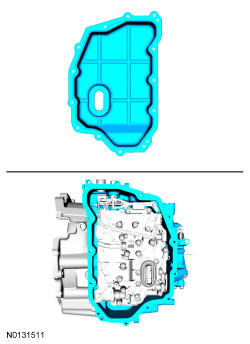

Make sure that the mating faces are clean and free of foreign material. Refer to RTV Sealing Surface Cleaning and Preparation in Engine System General Information .

GFD35719

Courtesy of FORD MOTOR COMPANY

2.

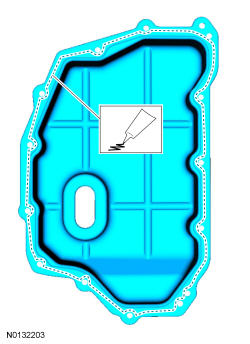

Apply a bead of the Ultra Silicone Sealant.

GFD35720

Courtesy of FORD MOTOR COMPANY

NOTE: Install the studbolts in the locations noted during disassembly.

NOTE: Inspect the main control-to-main control cover grommet to make sure that it seals on the inside of the main control cover or a transmission fluid leak will occur.

3.
Install the main control cover on the transmission and install the 13 main control cover bolts.
- Torque: 12 Nm (106 lb-in).

GFD35718

Courtesy of FORD MOTOR COMPANY

4.

Install the transmission fluid cooler thermal bypass valve on the main control cover studbolts and install the transmission fluid cooler thermal bypass valve bracket nuts.
- Torque: 9 Nm (80 lb-in).

GFD35717

Courtesy of FORD MOTOR COMPANY

5.

Connect the transmission main electrical connector.

GFD35716

Courtesy of FORD MOTOR COMPANY

6.

Install the CAC outlet tube on the CAC and tighten the clamp.
- Torque: 5 Nm (44 lb-in).

GFD34115

Courtesy of FORD MOTOR COMPANY

7.

Install the wiring retainers on the main control cover studbolts.

GFD35715

Courtesy of FORD MOTOR COMPANY

8.

Install the ACL. REFER to Intake Air Distribution and Filtering .

9.

Fill the transmission fluid. Refer to Transmission Fluid Drain and Refill .
