Transmission Range (TR) Sensor: Installation
WARNING: This page is about a different variant/trim than selected.
- 1.

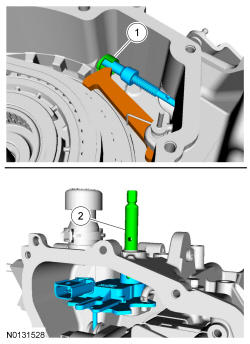

Install the TR sensor.- Install the TR sensor and park pawl actuating rod in the transmission case.
- Install the manual shaft in the transmission case through the TR sensor.
- 2.
Inspect the manual pin to make sure it is correctly installed in the manual valve. If it is not, pull the manual control lever shaft out and correctly install the manual pin in the manual valve and position the manual control lever shaft in place.
- 4.
Install the TR sensor detent spring and the TR sensor detent spring bolt.- Torque: 13 Nm (115 lb-in).
- 6.
Install the main control cover. Refer to Main Control Cover .
- 7.
Install the manual control lever and the manual control lever nut.- Torque: 24 Nm (18 lb-ft).
NOTE:
Make sure to hold the manual control lever while tightening the manual control lever nut or damage to the manual control lever and park components will occur.
NOTE:
Make sure that when installing the manual control lever it is fully seated onto the manual control lever shaft or damage to the manual control lever shaft will occur and the lever will come loose.
- 8.
Connect the selector lever cable end to the manual control lever with the manual control lever and selector lever in DRIVE. Check selector lever cable adjustment. REFER to Automatic Transaxle Transmission External Controls Transmission Control Switch (TCS) .
