Selector Lever Cable Adjustment - 6F35

General Procedure

1. 1.

   Remove the ACL outlet pipe. REFER to Intake Air Distribution and Filtering , Exploded View.

1. 2.

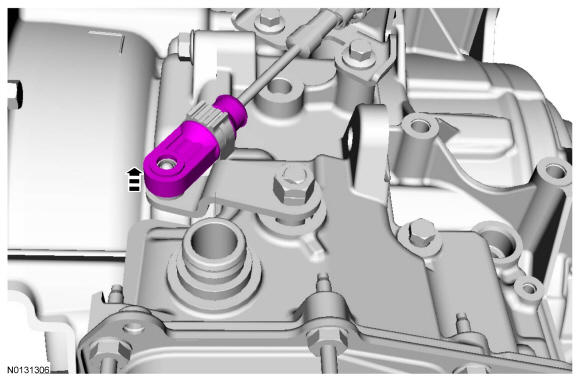

   Disconnect the selector lever cable end from the manual control lever.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Place the selector lever in DRIVE.

Courtesy of FORD MOTOR COMPANY

1. 4.

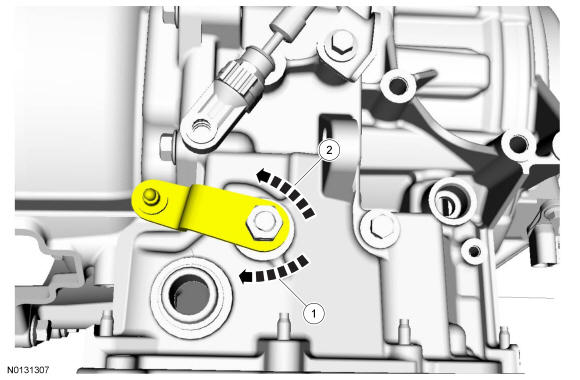

   Place the manual control lever in DRIVE.

   1. 1.

      Rotate the manual control lever clockwise until it stops.

   1. 2.

      Rotate the manual control lever counterclockwise 1 detent.

Courtesy of FORD MOTOR COMPANY

1. 5.

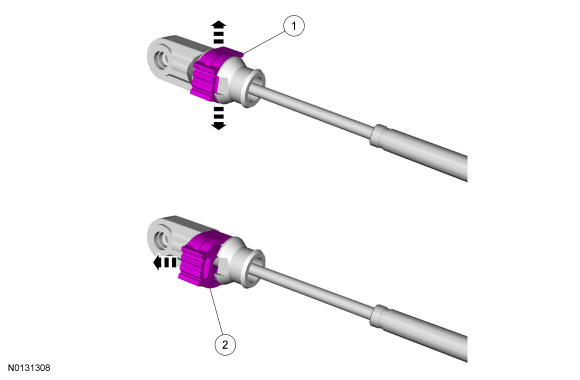

   Release the selector lever cable adjuster lock.

   1. 1.

      Carefully pry outward the adjuster lock tabs.

   1. 2.

      While holding the adjuster lock tabs outward, slide the lock to unlock the selector lever cable.

Courtesy of FORD MOTOR COMPANY

1. 6.

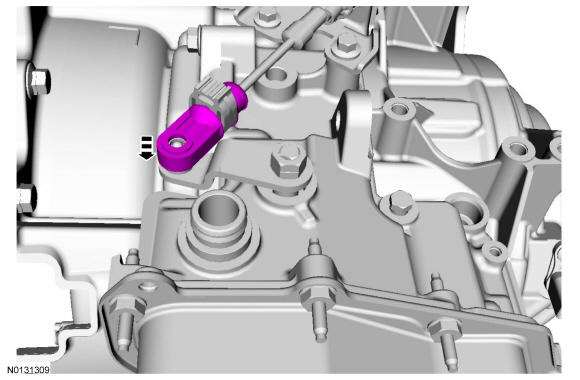

   NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
   NOTE: Make sure that the selector lever cable end is correctly installed onto the manual control lever ball stud by pulling back on the selector lever cable end.

   With the adjuster locking tab released, connect the selector lever cable end to the manual control lever.

Courtesy of FORD MOTOR COMPANY

1. 7.

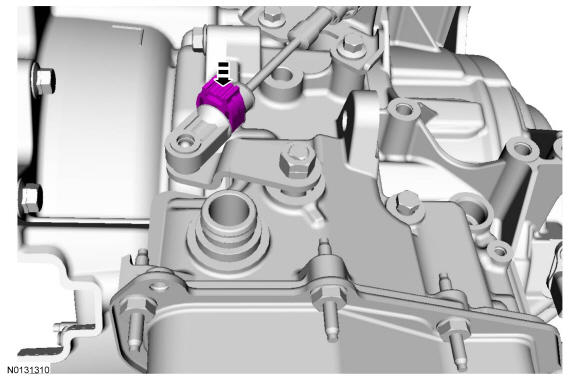

   NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.

   Slide the release tab back to lock the adjuster.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Install the ACL outlet pipe. REFER to Intake Air Distribution and Filtering , Exploded View.

1. 9.

   Verify the vehicle starts in PARK and NEUTRAL only and the reverse lamps illuminate in REVERSE.
