Selector Lever Cable - 6F35: Removal
WARNING:
Before beginning any service procedure in this service information, refer to SAFETY WARNINGS
- 1.
With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting , Lifting Points.
- 2.
Remove the ACL assembly. REFER to Intake Air Distribution and Filtering .
- 6.
Position the drivers seat to the full rearward and downward position and fully recline the seat back.
- 8.NOTE: The console upper finish panel is removed for clarity.
Disconnect the selector lever cable from the selector lever.
- 9.

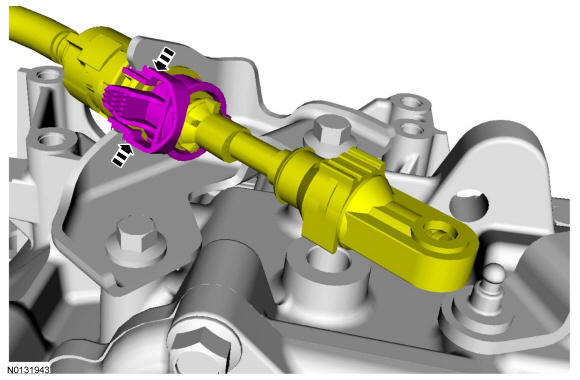

Remove the selector lever cable from the selector lever cable bracket and discard the selector lever cable retaining clip.- 1.
Release the 2 selector lever cable retaining clip tabs and pull the selector lever outward.
- 1.
- 12.
Remove the 2 nuts from the grommet, route the selector lever cable from the engine compartment through the floor and remove the selector lever cable from the passenger compartment.
