Halfshaft - LH: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
SPECIAL TOOL(S)
| Remover, Halfshaft 205-832 | |
| Remover, Front Wheel Hub 205-D070D93P-1175-B | |
| Slide Hammer 100-001T50T-100-A |

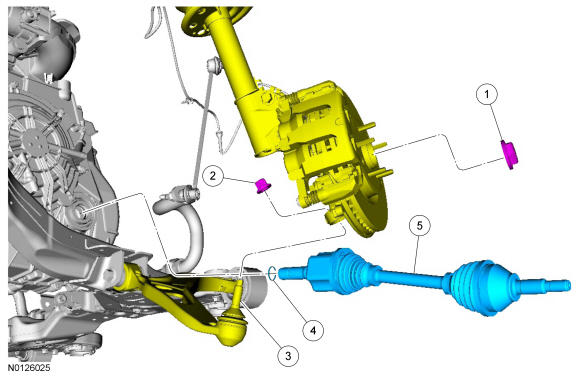

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W712435 | Wheel hub nut | - | - | REFER to Front Drive Halfshafts, INSTALLATION |
| 2 | W714890 | Lower ball joint nut | - | - | 200 Nm (148 lb-ft) |
| 3 | 3051 LH | Lower ball joint | - | - | - |
| 4 | 3B422 | Halfshaft Circlip | - | - | - |
| 5 | 3B437 | Halfshaft assembly | 205-D070 D93P-1175-B, 205-832, 100-001 T50T-100-A | - | - |
