Halfshaft - RH, Front Wheel Drive (FWD): Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
SPECIAL TOOL(S)
| Remover, Front Wheel Hub 205-D070D93P-1175-B |

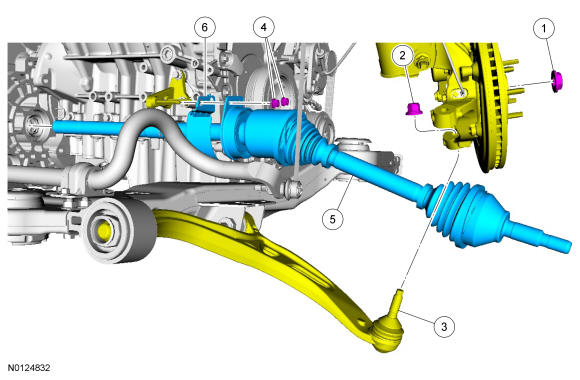

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W712435 | Wheel hub nut | - | - | REFER to Front Drive Halfshafts, INSTALLATION |
| 2 | W714890 | Lower ball joint nut | - | - | 200 Nm (148 lb-ft) |
| 3 | 3042 RH | Lower ball joint | - | - | - |
| 4 | W701731 | Halfshaft bracket nuts (2 required) | - | - | 25 Nm (18 lb-ft) |
| 5 | 3B436 | Halfshaft assembly | 205-D070 D93P-1175-B | - | - |
| 6 | 7F469 | Halfshaft bearing heat shield | - | - | - |
