Transmission Fluid Cooler Tubes - 2.0L GTDI: Installation

• 1.

  Install the transmission fluid cooler inlet and outlet hoses to the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY

• 2.

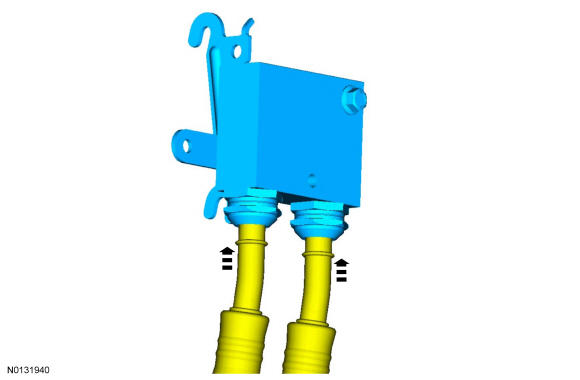

  Connect the transmission fluid thermal bypass valve to the transmission fluid cooler inlet and outlet hoses.

Courtesy of FORD MOTOR COMPANY

• 3.

  Position the transmission fluid thermal bypass valve and install the 2 transmission fluid thermal bypass valve nuts.
  • Torque: 9 Nm (80 lb-in).

Courtesy of FORD MOTOR COMPANY

• 4.

  Install the transmission fluid cooler hose secondary latches.

Courtesy of FORD MOTOR COMPANY

• 5.

  Position back the wiring harness and attach the 2 pin-type retainers.

Courtesy of FORD MOTOR COMPANY

• 6.

  Inspect the transmission mounted transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary. Lubricate the transmission mounted transmission fluid cooler tube seals with clean Motorcraft® MERCON® LV Automatic Transmission Fluid and install the backing rings and seals on the transmission mounted transmission fluid cooler tubes.

  Item	Description
  1	Backing ring
  2	Seal

Courtesy of FORD MOTOR COMPANY

• 7.

  Install the transmission mounted transmission fluid cooler outlet tube and a new transmission mounted transmission fluid cooler outlet tube bolt.
  • Torque: 10 Nm (89 lb-in).

Courtesy of FORD MOTOR COMPANY

• 8.

  Tighten the transmission mounted transmission fluid cooler outlet tube nut.
  • Torque: 30 Nm (22 lb-ft).

Courtesy of FORD MOTOR COMPANY

• 9.

  Install the transmission mounted transmission fluid cooler inlet tube and tighten the transmission mounted transmission fluid cooler inlet tube nut.
  • Torque: 30 Nm (22 lb-ft).

Courtesy of FORD MOTOR COMPANY

• 10.

  Install a new transmission mounted transmission fluid cooler inlet tube bolt.
  • Torque: 10 Nm (89 lb-in)

Courtesy of FORD MOTOR COMPANY

• 11.

  Install the ACL assembly. REFER to Intake Air Distribution and Filtering .

• 12.

  Fill the transmission with Motorcraft® MERCON® LV Automatic Transmission Fluid and verify correct operation. REFER to Automatic Transmission - 6F35 .
