Selector Lever Cable - 6F50/6F55: Removal
- 1.
With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting , Lifting Points.
- 2.
Remove the air cleaner outlet pipe. REFER to Intake Air Distribution and Filtering .
- 6.
Position the drivers seat to the full rearward and downward position and fully recline the seat back.
- 8.NOTE: The console upper finish panel is removed for clarity.
Disconnect the selector lever cable from the selector lever.
- 9.
Remove the selector lever cable from the selector lever cable bracket and discard the selector lever cable retaining clip.- 1.
Release the 2 selector cable retaining tabs and pull the selector lever outward.
- 1.
- 12.

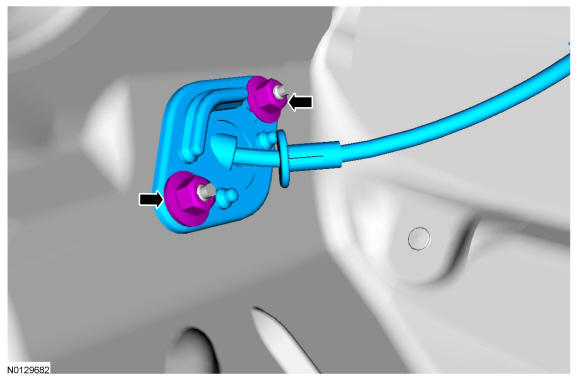

Remove the 2 nuts from the grommet, route the selector lever cable from the engine compartment through the floor and remove the selector lever cable from the passenger compartment.
