Throttle Body: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting , Lifting Points.

2.

Remove the CAC intermediate outlet tube and the CAC lower outlet tube. REFER to Intake Air Distribution and Filtering .

3.

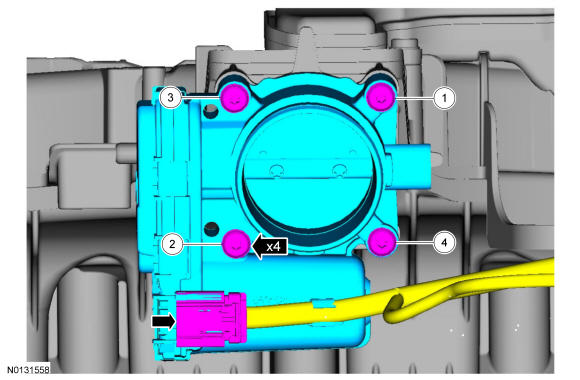

- 10 Nm (89 lb-in) in the sequence shown in illustration.

GFD35341

Courtesy of FORD MOTOR COMPANY

4.

Remove and discard the TB gasket.

GFD35342

Courtesy of FORD MOTOR COMPANY
