Cooling Fan Motor and Shroud - 3.5L Ti-VCT: Removal

WARNING: Before beginning any service procedure in this service information, refer to SAFETY WARNINGS

NOTE: Removal steps in this procedure may contain installation details.

• 1.

  Remove the ACL and the ACL outlet pipe. REFER to Intake Air Distribution and Filtering .

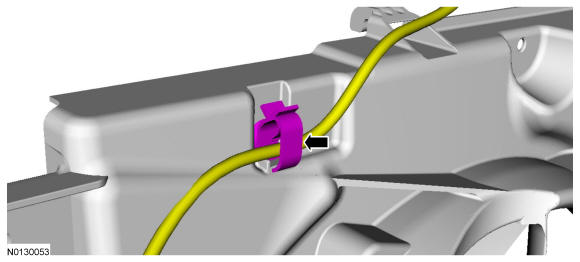

• 2.

  If equipped.

Courtesy of FORD MOTOR COMPANY

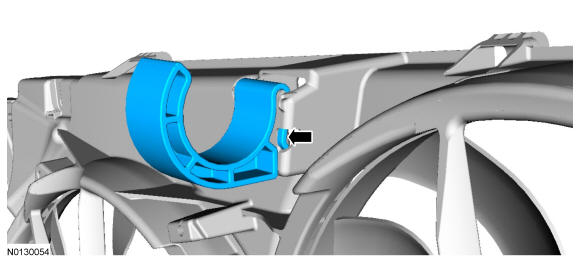

• 3.



Courtesy of FORD MOTOR COMPANY

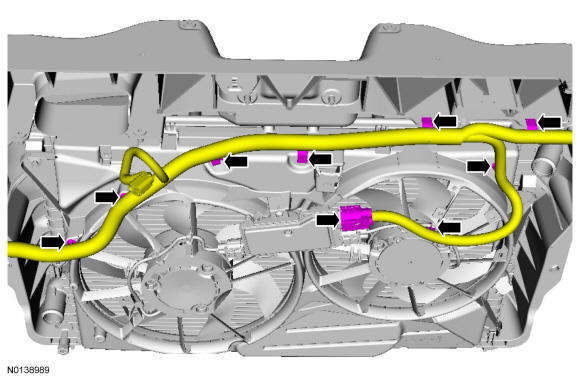

• 4.



Courtesy of FORD MOTOR COMPANY

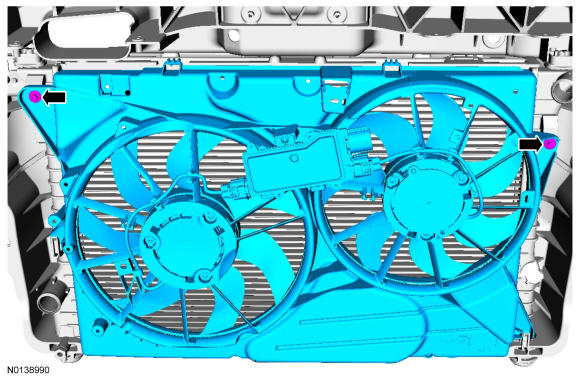

• 5.



Courtesy of FORD MOTOR COMPANY

• 6.

  3.5L Twin Independent Variable Cam Timing (Ti-VCT) engine.

Courtesy of FORD MOTOR COMPANY

• 7.

  3.5L Twin Independent Variable Cam Timing (Ti-VCT) engine.
  • 6 Nm (53 lb-in).

Courtesy of FORD MOTOR COMPANY
