Ignition Coil-On-Plug: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the ACL outlet pipe. REFER to Intake Air Distribution and Filtering .

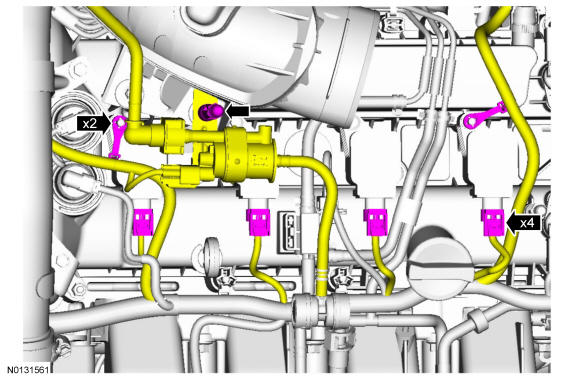

2.
- 5 Nm (44 lb-in).

Courtesy of FORD MOTOR COMPANY

NOTE: When installing apply a small amount of silicone brake caliper grease and dielectric compound to the inside of the ignition coil-on-plug boots before installation.

NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.

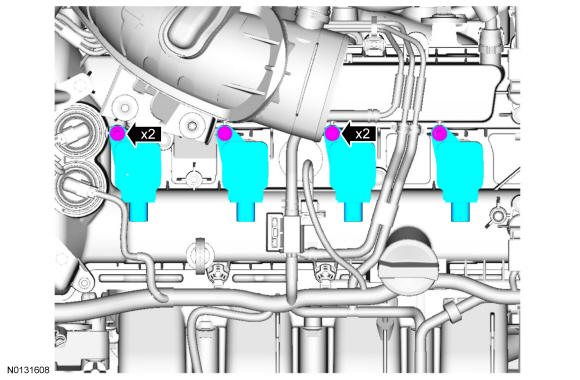

3.
- 8 Nm (71 lb-in).

Courtesy of FORD MOTOR COMPANY

4.

Inspect the ignition coil-on-plug rubber boot assembly for cracks, rips, or tears. Replace any damaged coil-on-plug rubber boots.

Courtesy of FORD MOTOR COMPANY
