Removal And Installation - Rear Driveline Module - Front

Courtesy of CHRYSLER GROUP, LLC

REMOVAL

1. Remove the rear driveline module, Refer to REMOVAL AND INSTALLATION .
   NOTE:

   Prior to using special tools, lubricate Pressing Tool (special tool #2026900170, Kit, Pressing Tool) (E) threads to provide ease of use and promote tool longevity.

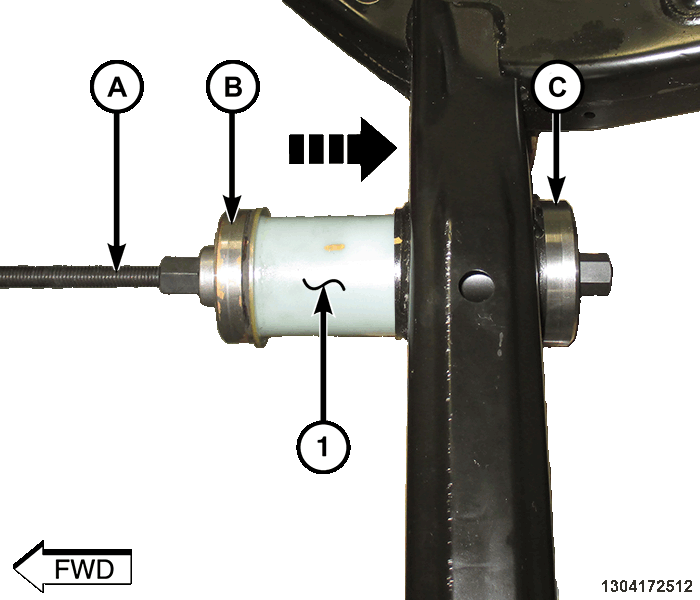

2. Assemble tools over isolator crossmember assembly as shown:
   1. (special tool #2026900170, Kit, Pressing Tool)
   2. Receiver, rear driveline module front bushing - removal: 2074212130
   3. Driver, rear driveline module front bushing - removal: 2074211130
3. Tighten Pressing Tool (A), pressing bushing out of crossmember and remove all tools.

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

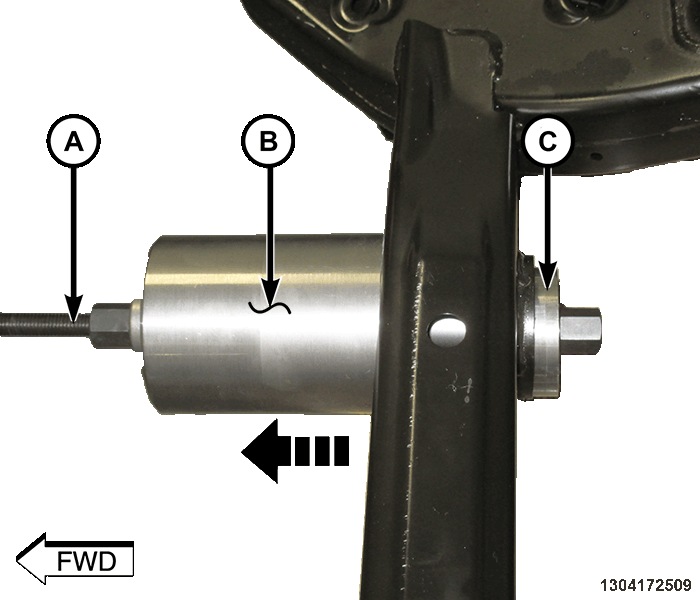

1. Position the isolator (1) onto the crossmember and assemble tools over isolator crossmember assembly as shown:
   NOTE:

   A mixture of soap and water may be used to aid installation of the isolator.

   NOTE:

   Prior to using special tools, lubricate Pressing Tool assembly (special tool #2026900170, Kit, Pressing Tool) (1) threads to provide ease of use and promote tool longevity.

   1. (special tool #2026900170, Kit, Pressing Tool)
   2. Driver, rear driveline module front bushing - installation: 2074209130
   3. Receiver, rear driveline module front bushing - installation: 2074210130
2. Tighten the Pressing Tool (A) screw-drive, pressing the isolator (1) into the crossmember.

   Courtesy of CHRYSLER GROUP, LLC

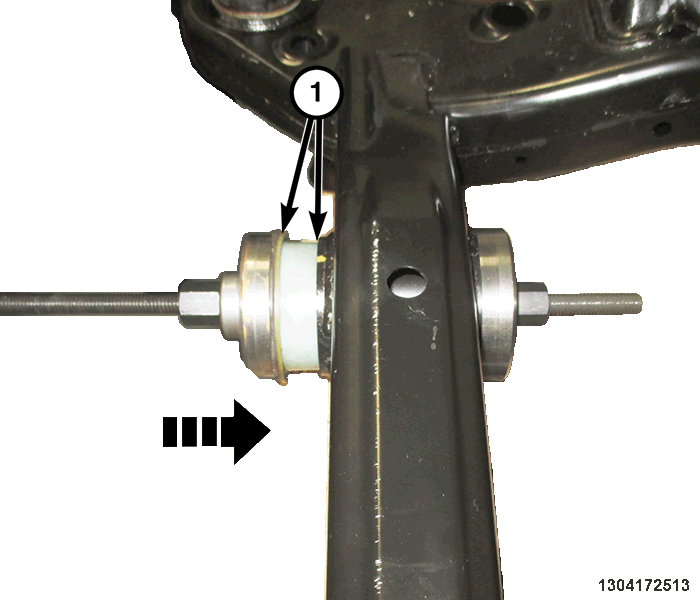

3. Install the isolator until the flange contacts the surface of the crossmember (1).
4. Remove the tools.
5. Install the rear driveline module, Refer to REMOVAL AND INSTALLATION .
