Removal And Installation: Installation
- Using a clean lint free cloth, wipe the seal cavity clean of oil and debris.
- Inspect the seal bore for scratches or cracks. If damage is evident replace the Power Transfer Unit (PTU).
- Place the NEW

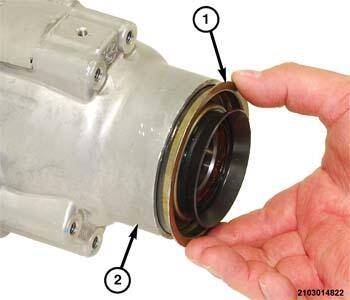

lip seal (1) in position on the PTU housing (2).

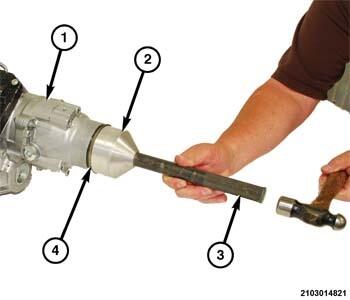

- Using tool (special tool #9684, Installer, Seal) (2) and (special tool #C-4171, Driver Handle, Universal) (3), install the new seal in the PTU housing (1).
- Install the right side halfshaft. Refer to REMOVAL WITH INTERMEDIATE SHAFT or REMOVAL WITHOUT INTERMEDIATE SHAFT .
- Remove the drain pan from under the vehicle.
- Fill the PTU with the proper fluid. Refer to STANDARD PROCEDURE .
- Remove the support and lower the vehicle.
- Road test the vehicle to verify the repair.
